Cubic and rotative CNC machining

Our customers benefit from our wide range of CNC machining: turning, milling, drilling, eroding and grinding of individual parts up to series of 10'000 parts in a size range of 50x50x50mm to 2000x800x500mm.

Choose one of our competences and learn more::

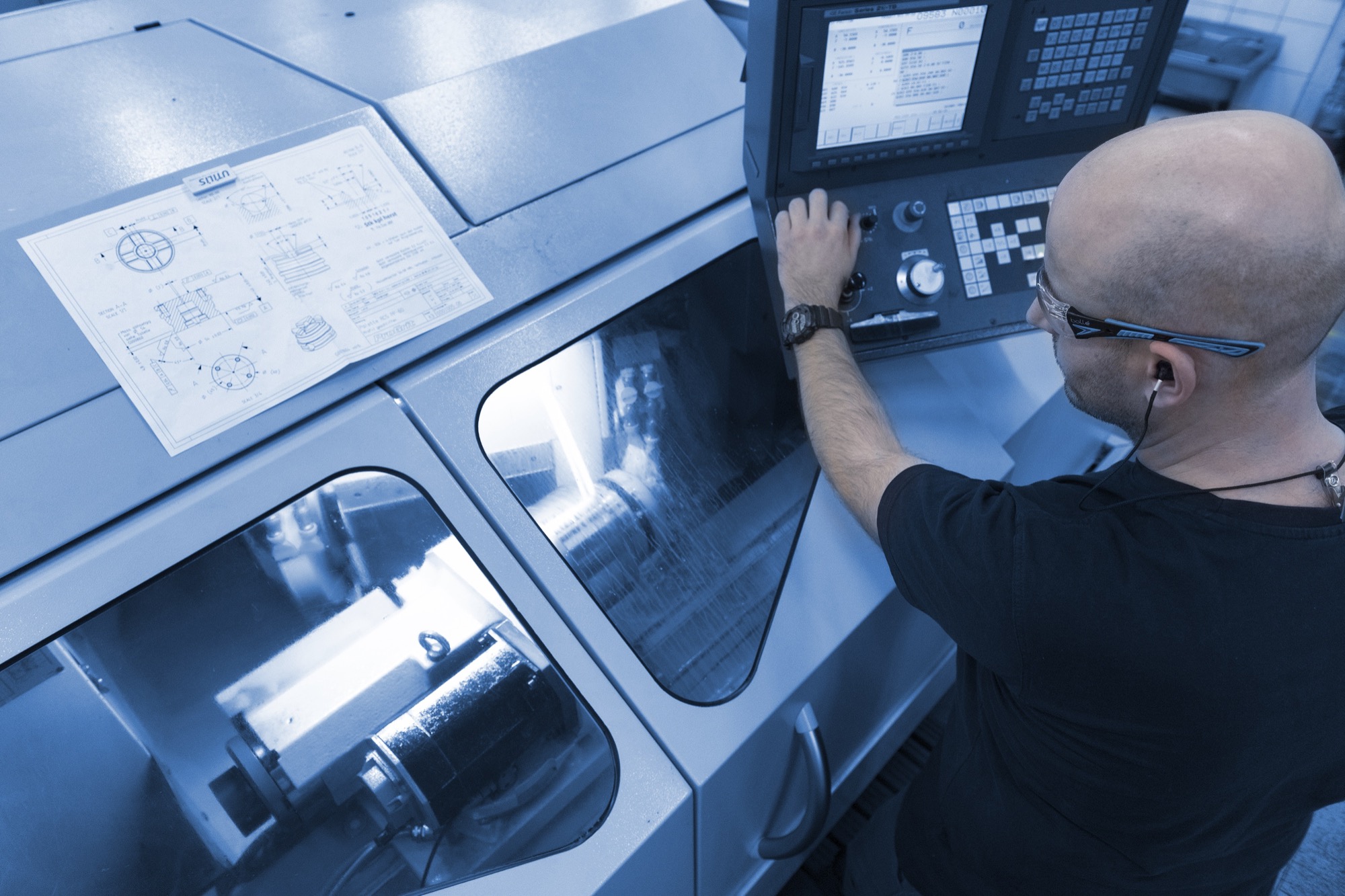

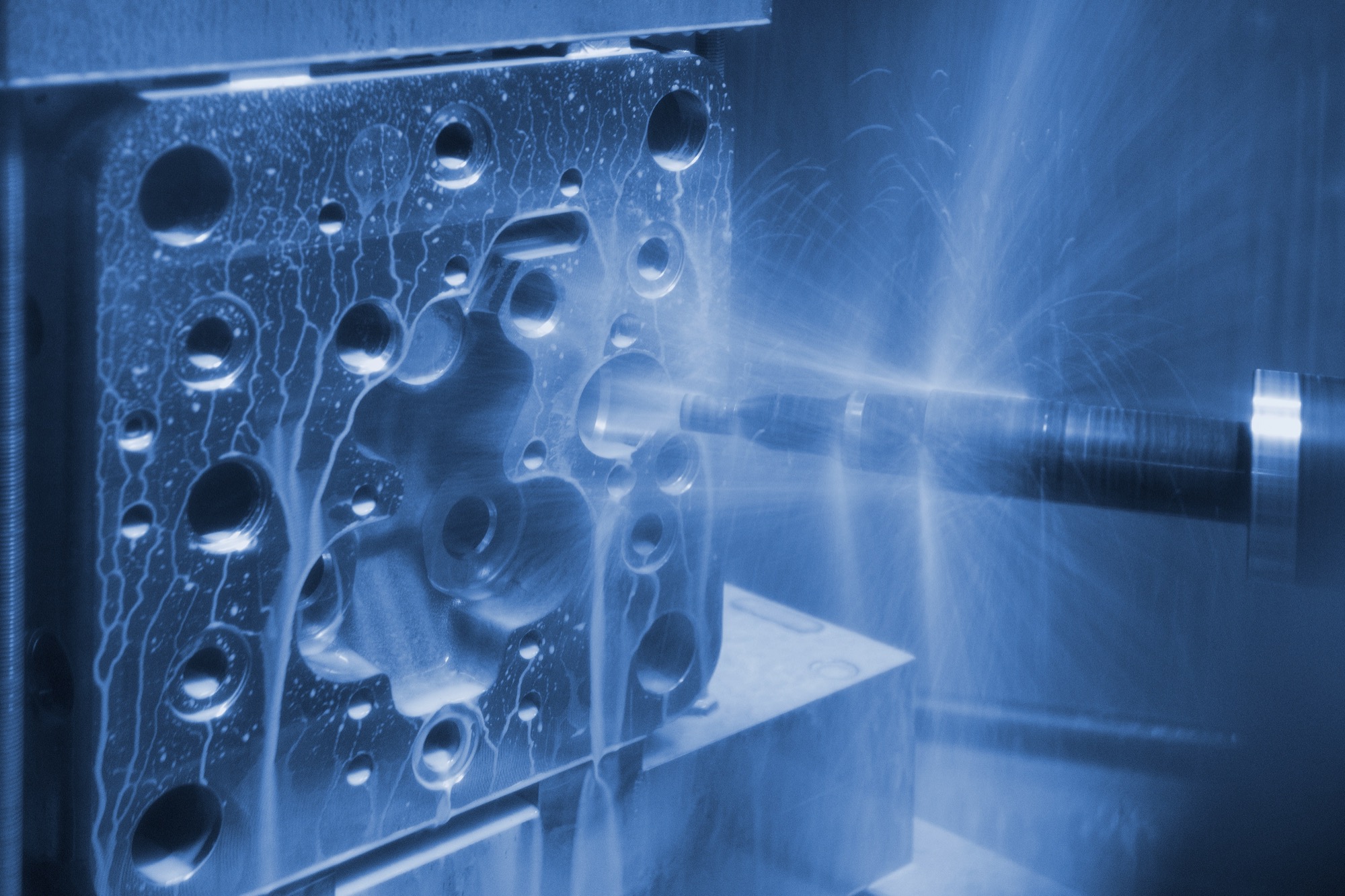

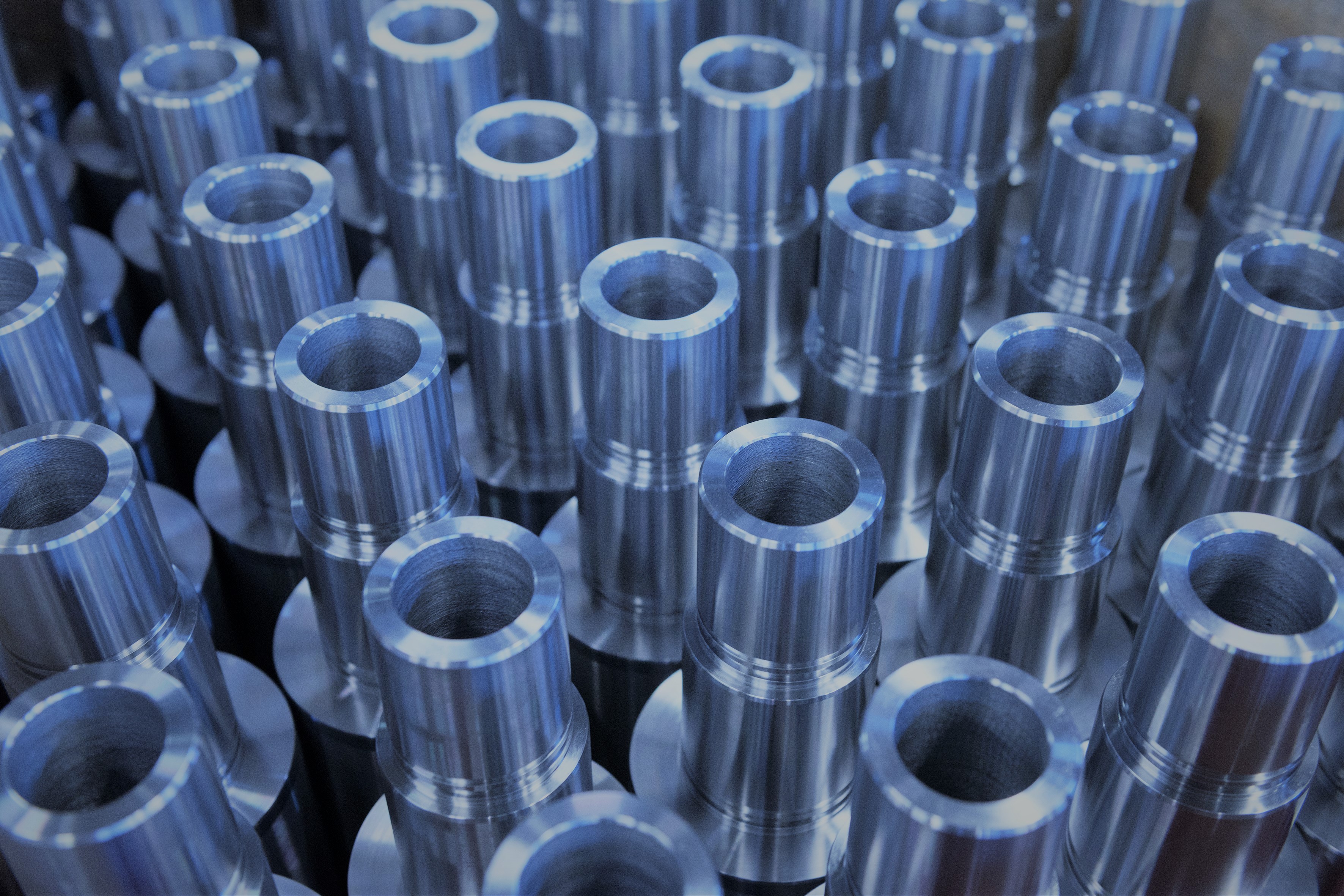

CNC turning, CNC milling & CNC drilling

Fast and flexible. Thanks to our extensive range of universal and special machines, we have the ideal machine for the most diverse tasks. We will shape your workpieces 1:1 according to the drawing!

Know-how

Rotative and cubic CNC-machining for the production of small, medium and large CNC parts made of steel, stainless steel, cast iron, special steels or nickel-based alloys and aluminium alloys. Production to exacting tolerances. Small and large series, or single parts for complex structures.

Our large machine park includes: Various CNC turning centres, CNC milling centres and boring machines. Wide range of accessories: tool changers, pallet systems, automation, clamping devices, jigs.

WORKING RANGE

CNC turning centre: D: 770 L: 1‘500
4-axis CNC machining centre: Xmax: 1‘000 Ymax: 800 Zmax: 800 C: 360°
CNC coordinate boring machine: Xmax: 3‘000 Ymax: 1‘600 Zmax: 500

Automated CNC manufacturing

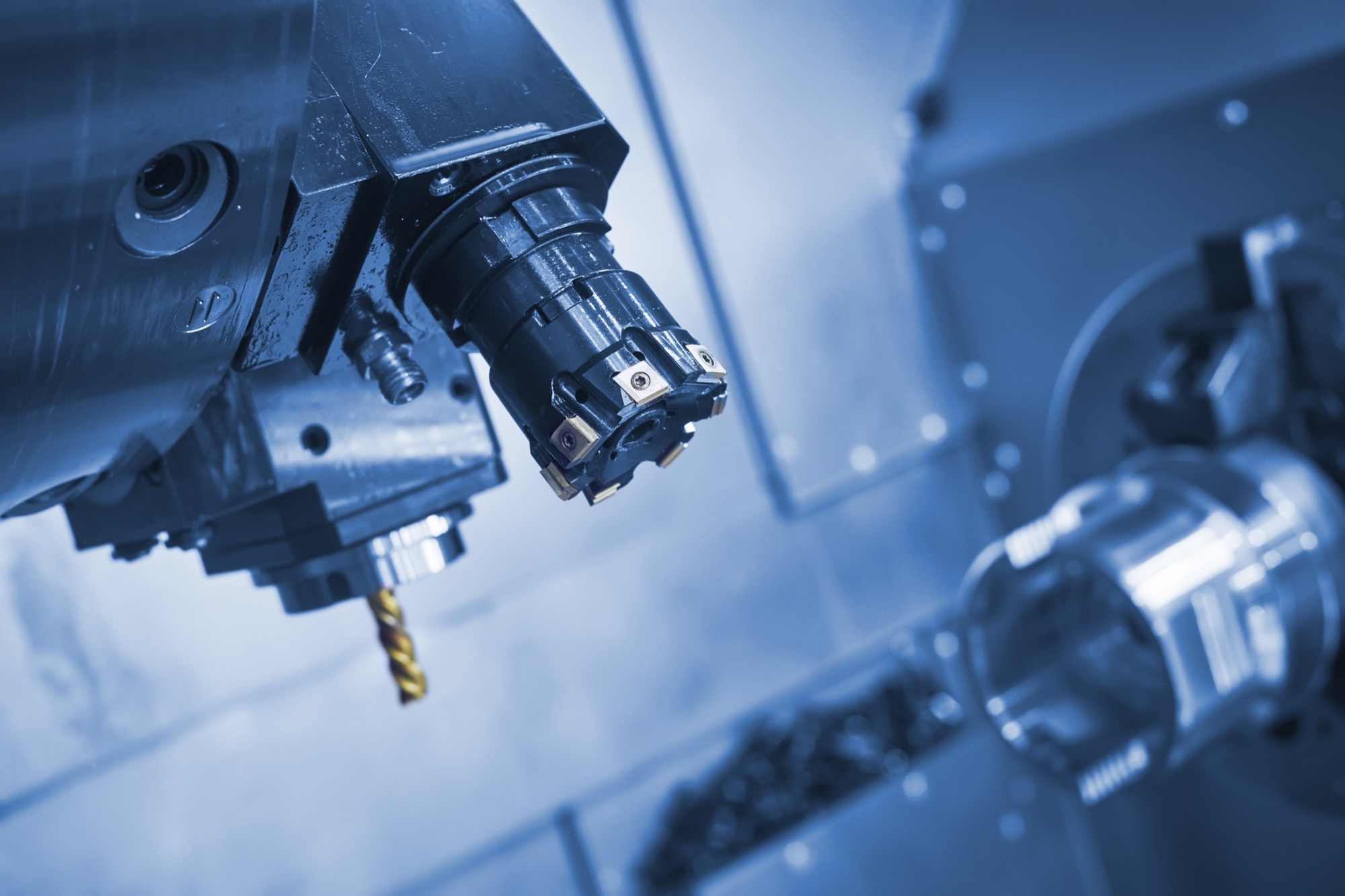

Highly productive and automated production of complex parts: our 5-axis machining centres and automated multi-axis turning centres can handle the most complex geometries. From medium to large quantities.

Know-how

Production of CNC parts from steel, stainless steel, special steels or nickel-based alloys as well as aluminium alloys.

The high-performance machines allow the efficient production of complex parts in a few clamping operations. In combination with soft clamping systems, automation and qualified personnel, this is the basis for our high quality.

Our large machine park includes various high-precision 5-axis CNC machining centres, partly in combination with:

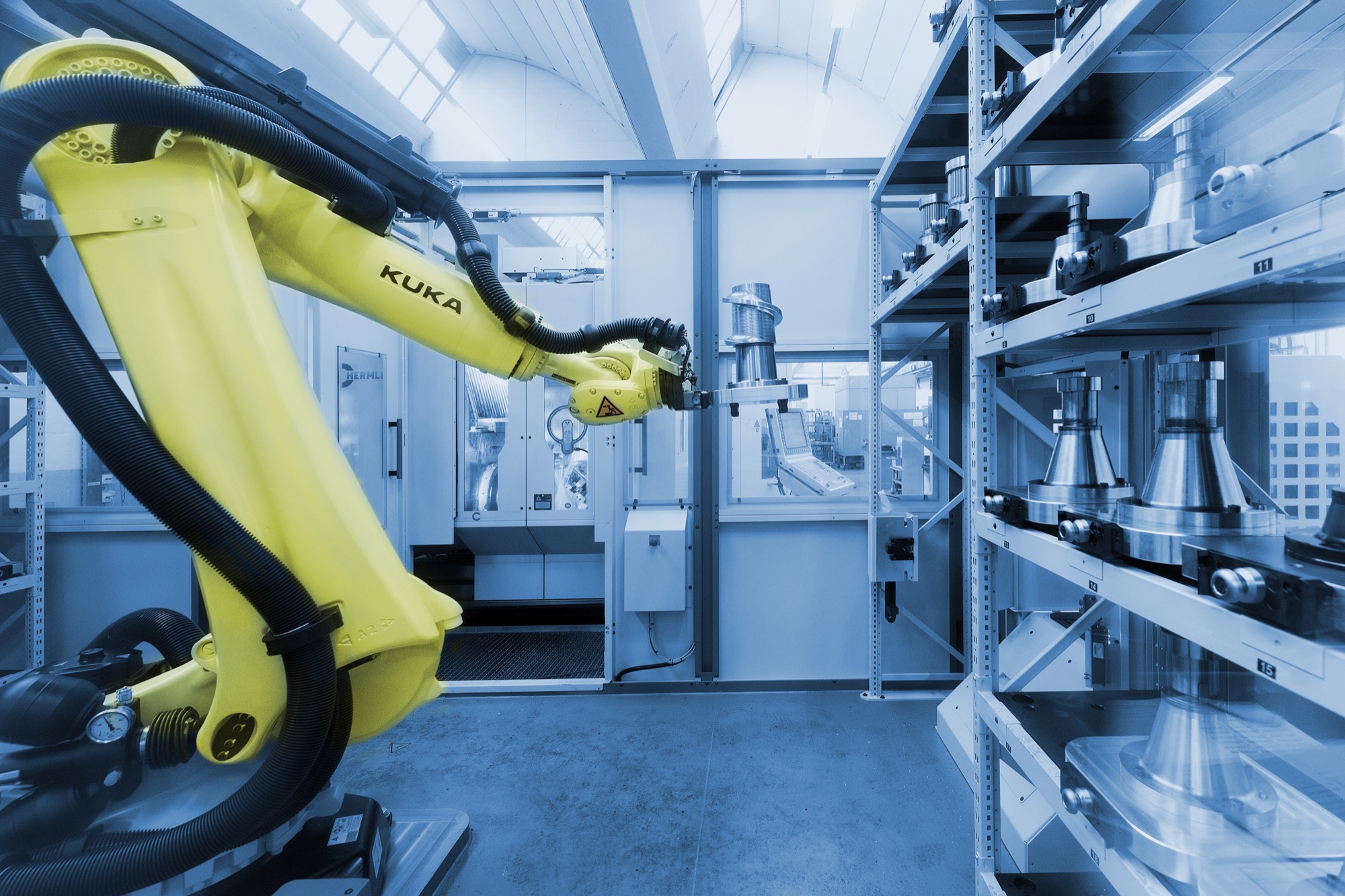

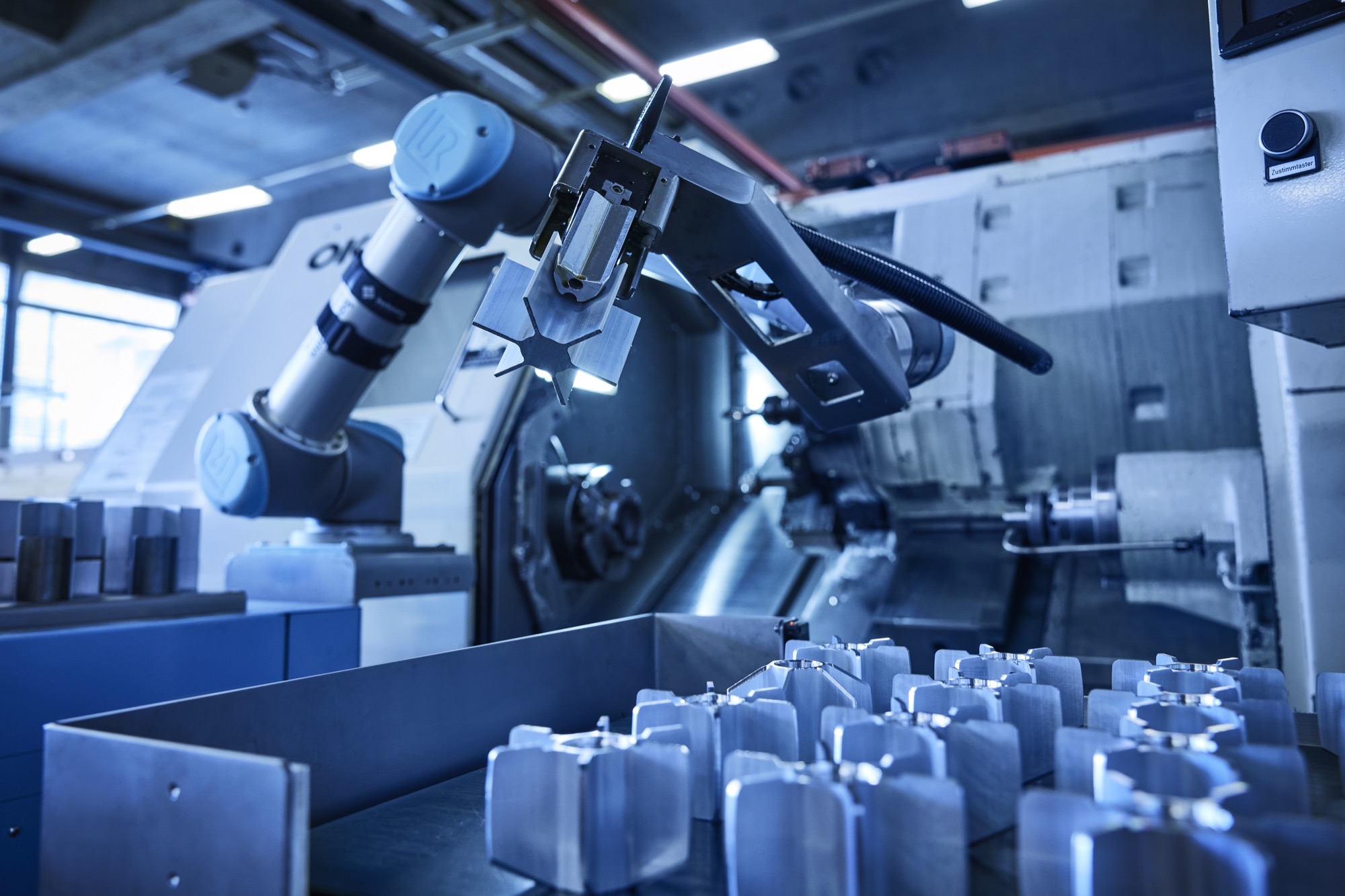

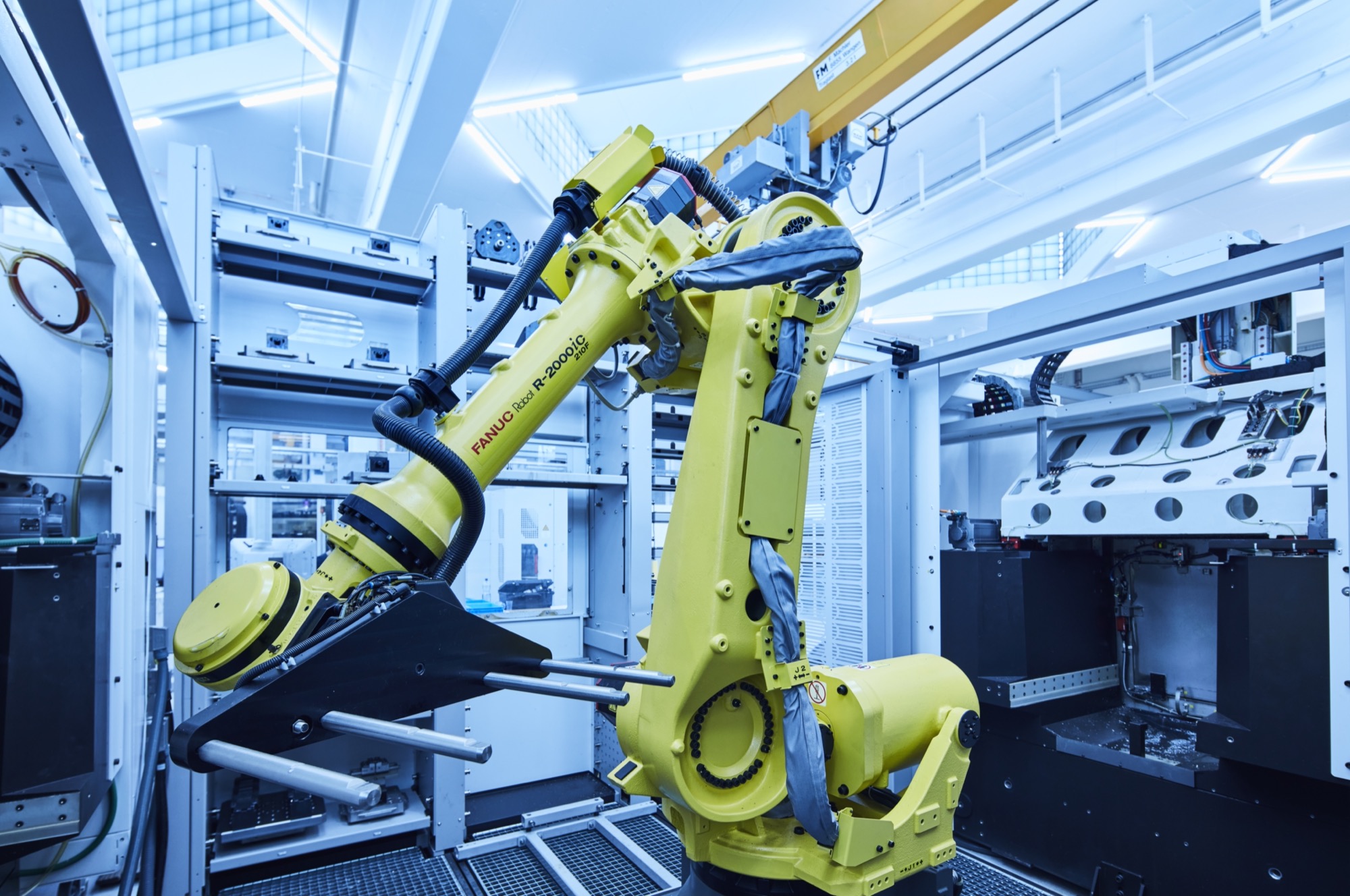

Industrial robots / handling systems for automatic loading and unloading

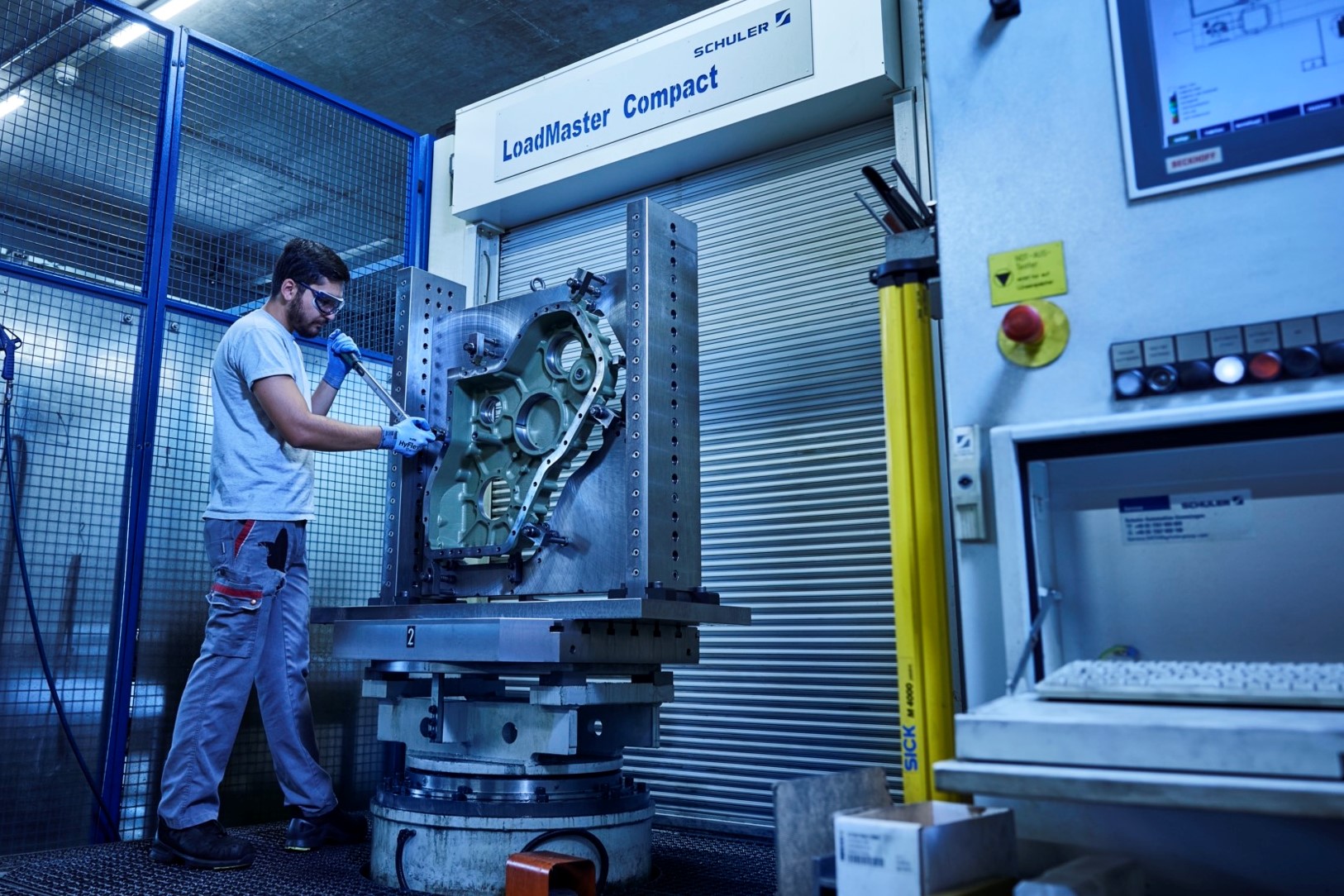

High precision pallet systems for high autonomy

WORKING RANGE

5-axis CNC machining centre: Xmax: 1'250 / Ymax: 800 / Zmax: 800 / C: 360° B: 180°

CNC precision manufacturing

CNC cylindrical and surface grinding, CNC profile grinding - Erosion, drilling & honing - Cutting, grooving - Laser engraving

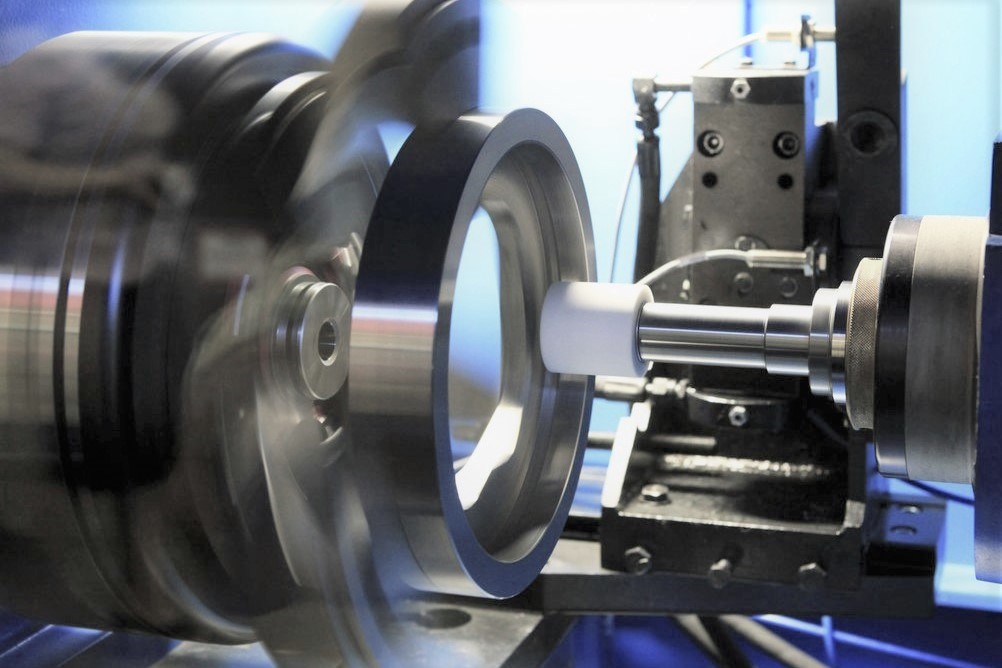

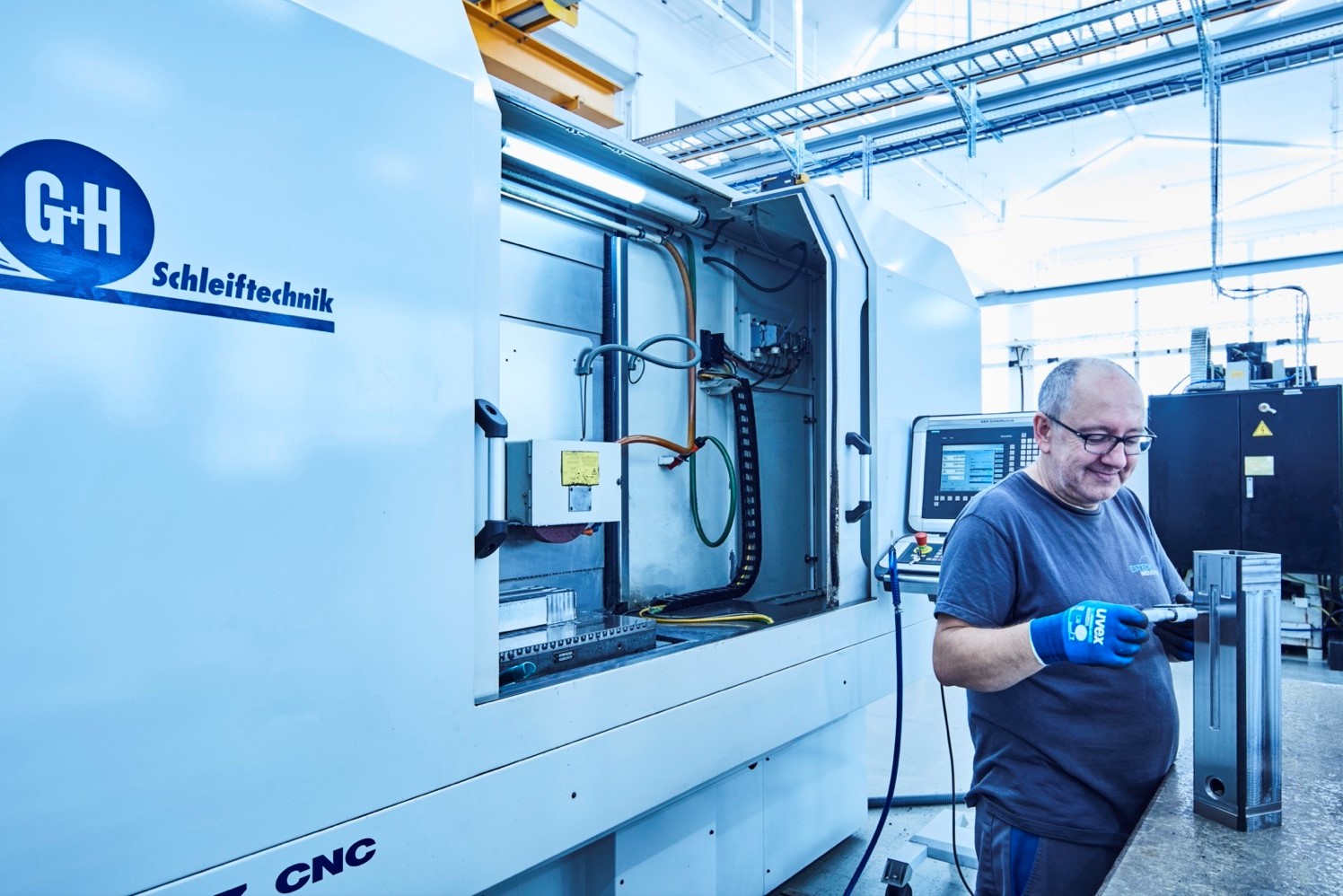

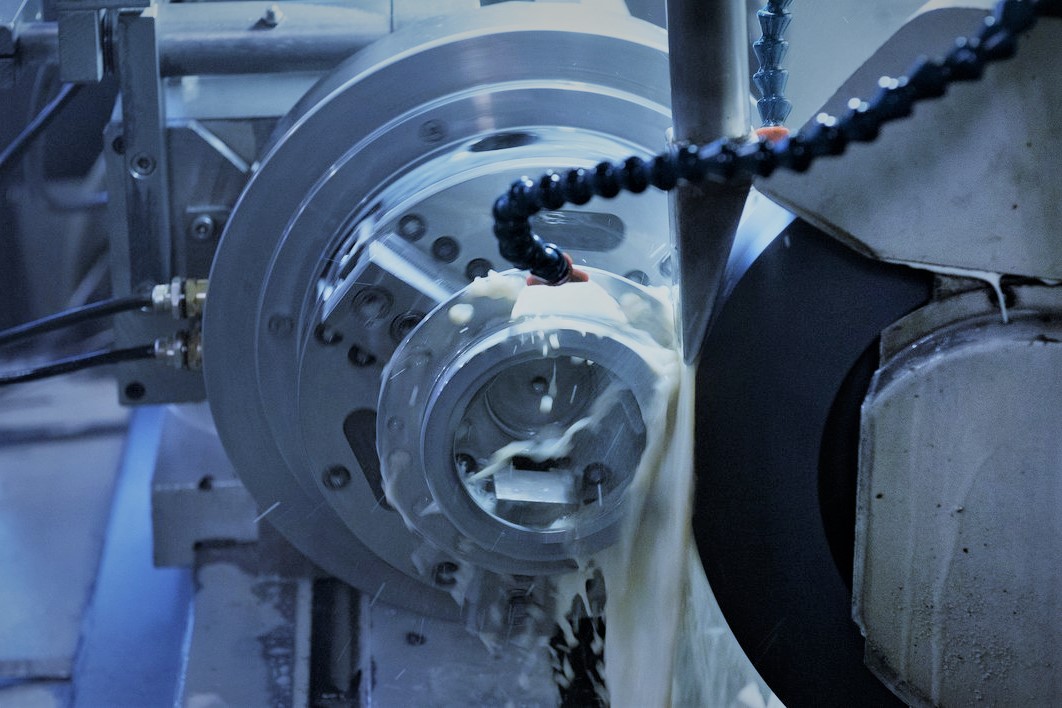

CNC CYLINDRICAL AND SURFACE GRINDING / CNC PROFILE GRINDING

High precision and fineness: the grinding process allows the surface roughness to be decisively minimised. Whether round or flat parts: we have the know-how and the machines.

Know-how

CNC rotary and cubic machining for the production of small, medium and large parts made of steel, stainless steel, special steels, nickel-based alloys, hardened steels and aluminium alloys.

Achievement of the most demanding tolerances: The achievable average roughness values Ra are 0.2 ...1.6 μm. Small or large series, or single parts for complex structures.

WORKING RANGE

Cylindrical grinding machines for external machining: Dmax: 600 Lmax: 5‘000
Cylindrical grinding machines for internal machining: Dmax: 300
CNC surface grinding machines: Xmax: 1‘600 Ymax: 600 Zmax: 350
CNC profile grinding machines: Xmax: 900 Ymax: 400 Zmax: 375

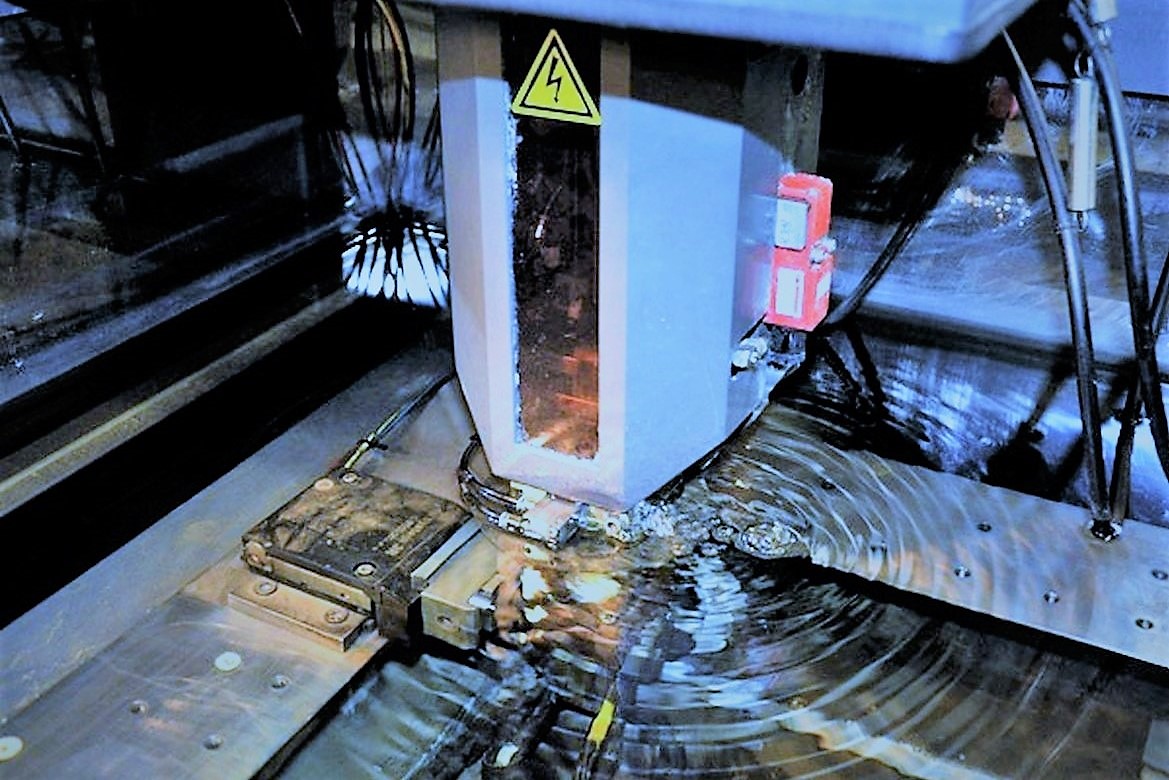

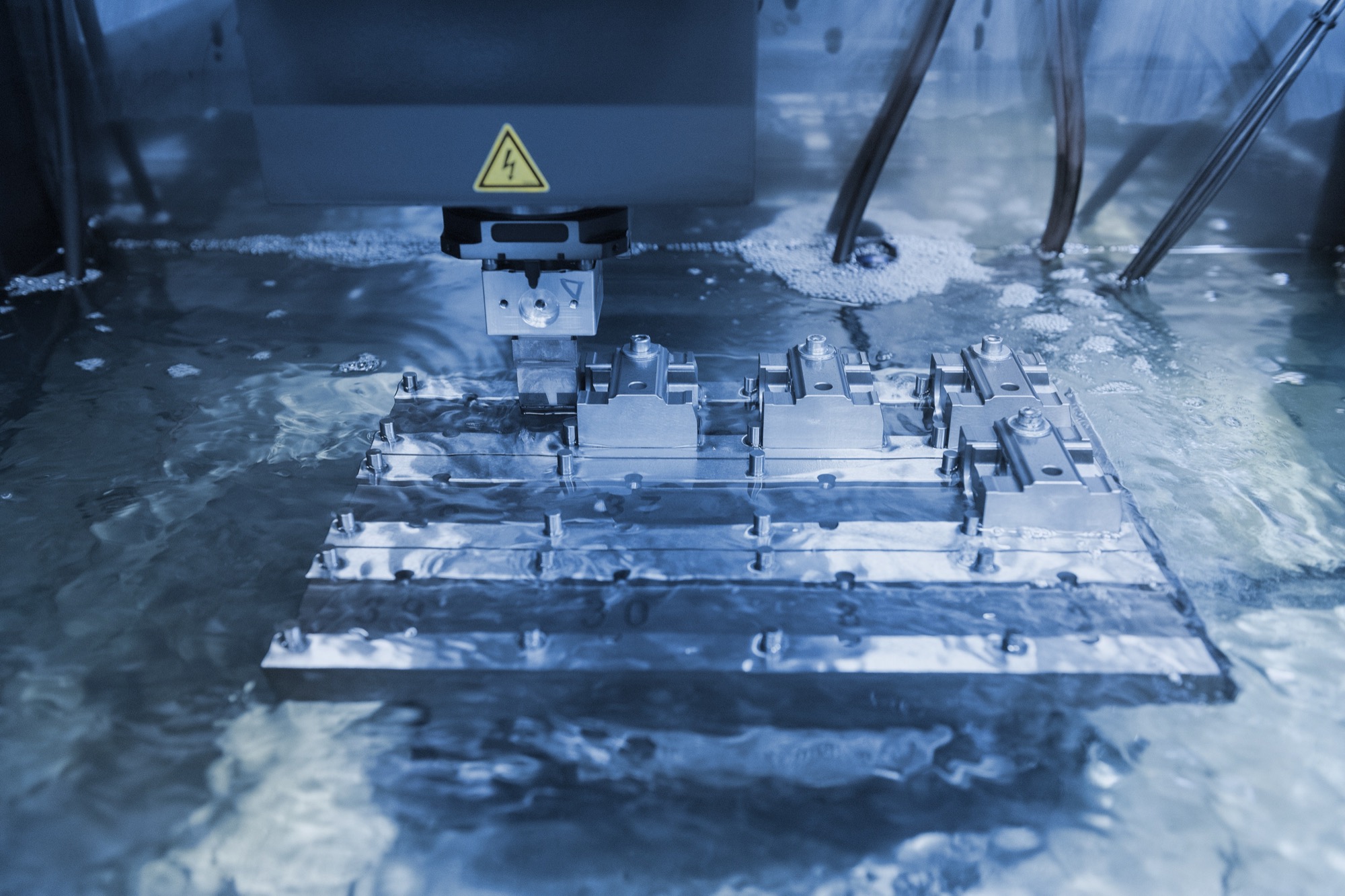

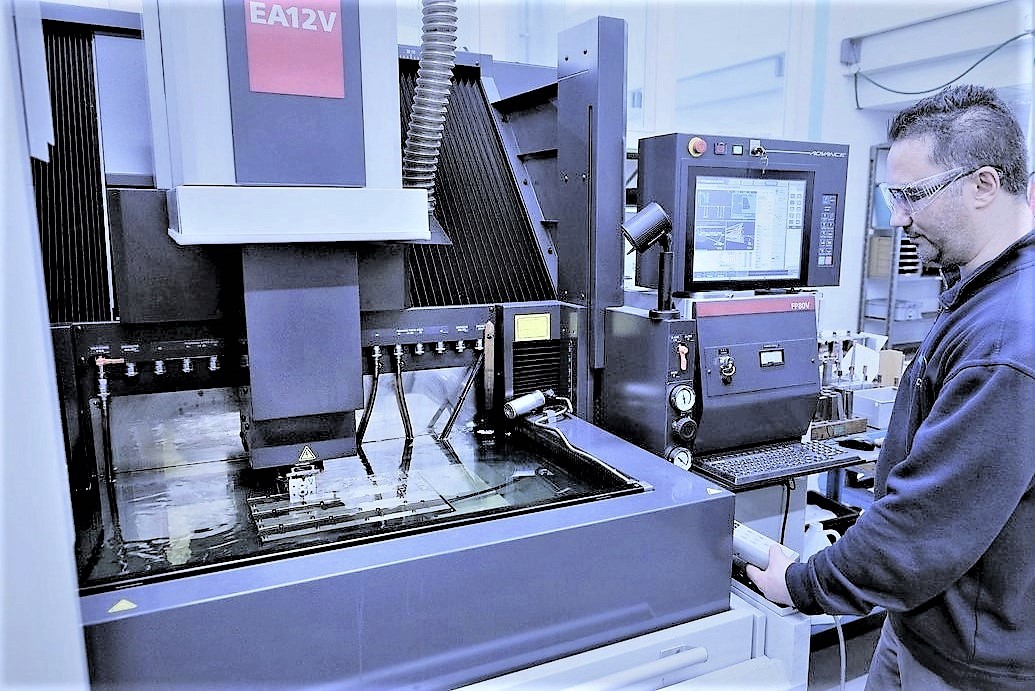

Wire and die sinking EDM / CYLINDER HONING / LAPPING

Special geometries or the highest surface requirements require these manufacturing processes.

Know-how

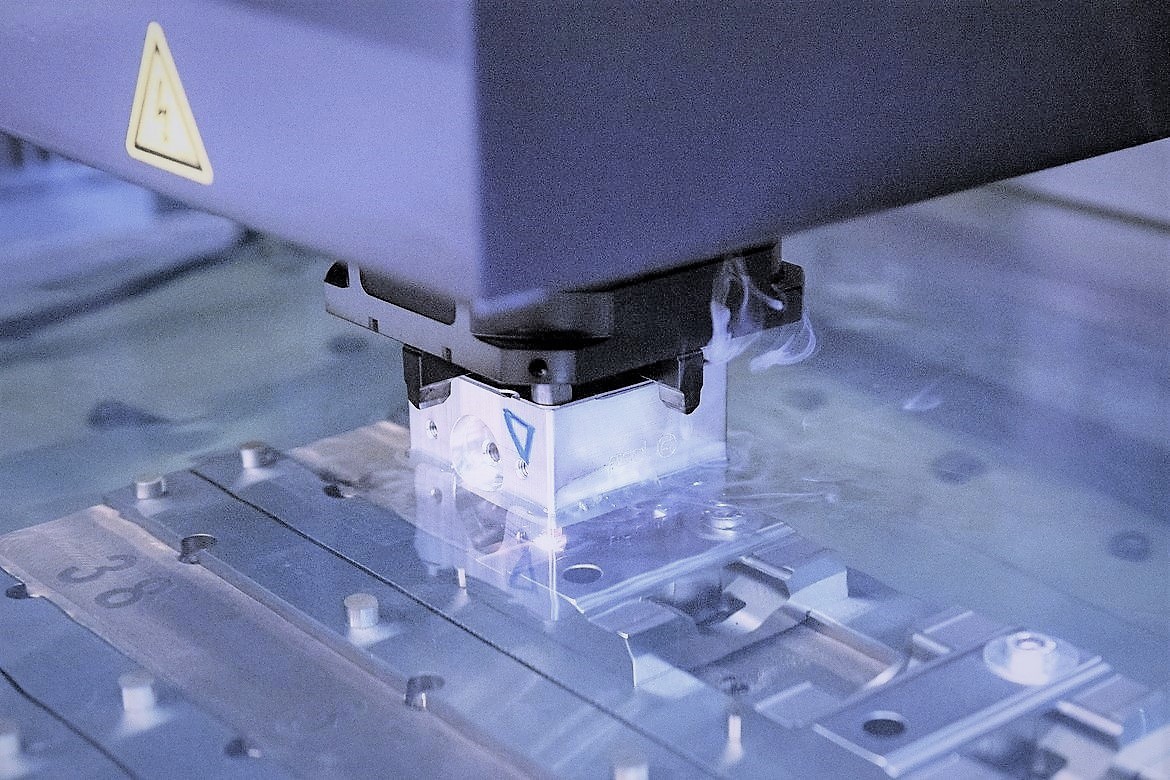

Wire and die sinking EDM of small and medium-sized workpieces in conductive materials such as steel, special steels or nickel-based alloys as well as aluminium alloys. Initial hole EDM (in connection with wire EDM) is also possible.

The advantage of honing is that the workpiece does not have to rotate (unlike cylindrical grinding).

During honing, an average roughness Ra of up to 0.2 μm can be achieved. This makes it possible to achieve very demanding tolerance values.

Small or large series, or single parts for complex structures.

Our large machine park includes various erosion, lapping and honing machines. For special applications, we work with selected partner companies.

WORKING RANGE

CNC wire EDM machines: Xmax: 500 Ymax: 350 Zmax: 300
CNC sinker EDM machines: Xmax: 400 Ymax: 300 Zmax: 300

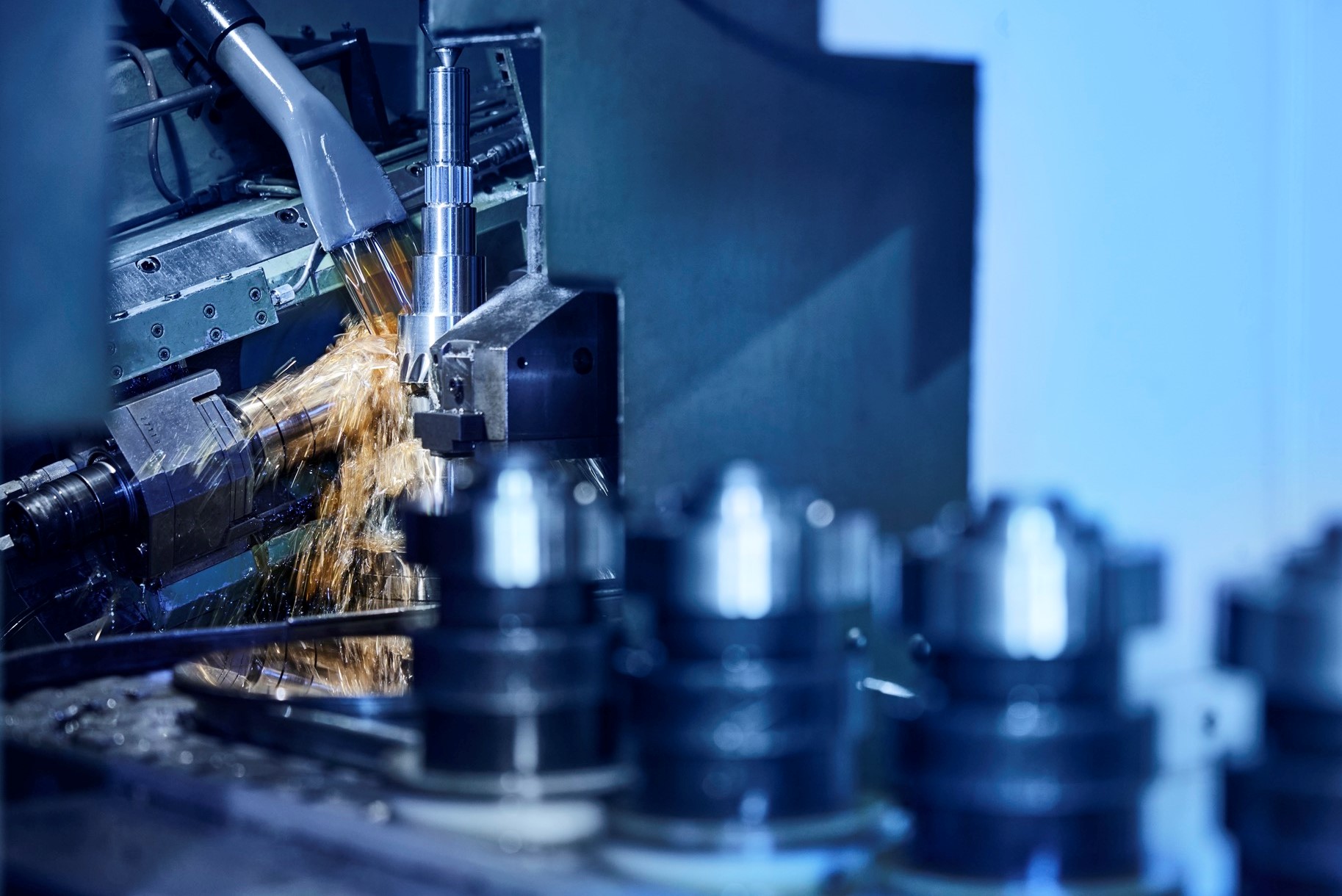

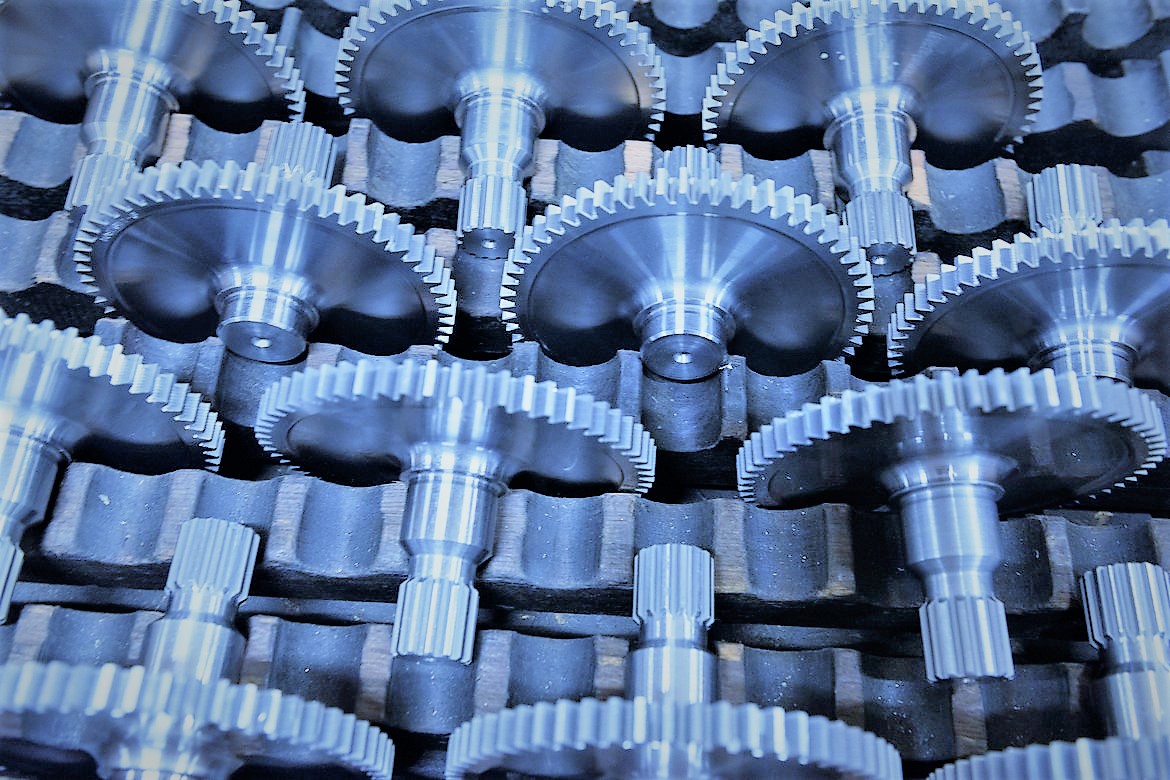

MANUFACTURE OF GEARS AND KEYWAYS

The manufacture of high-quality gears and keyways is part of our service portfolio. To keep the gears running.

Know-how

A gear is a positively locking connection for the transmission of force and movement or for the purpose of a fixed but detachable coupling.

We cover various selected manufacturing processes for external and internal gears as well as keyways. For the production of gears and components with keyways.

Our large machine park includes:

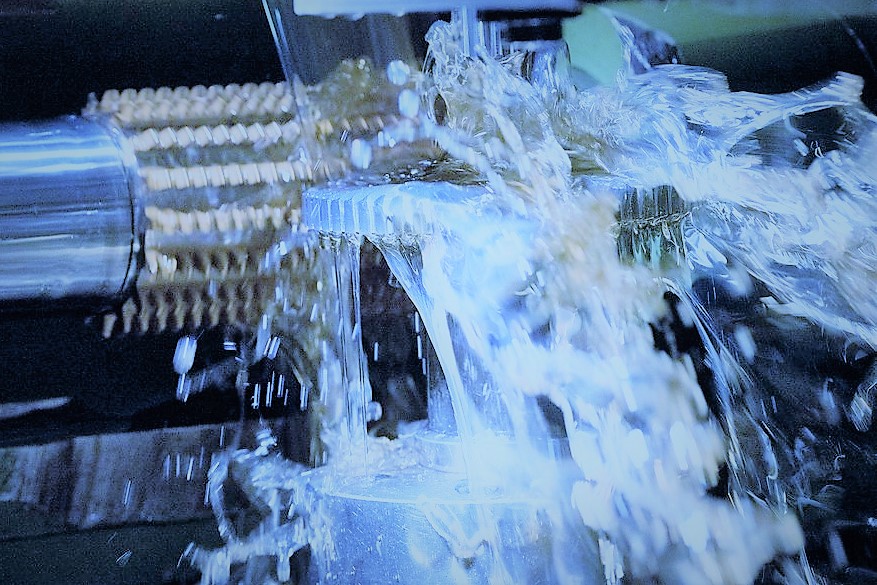

Various spur and helical gear cutting machines up to module 6

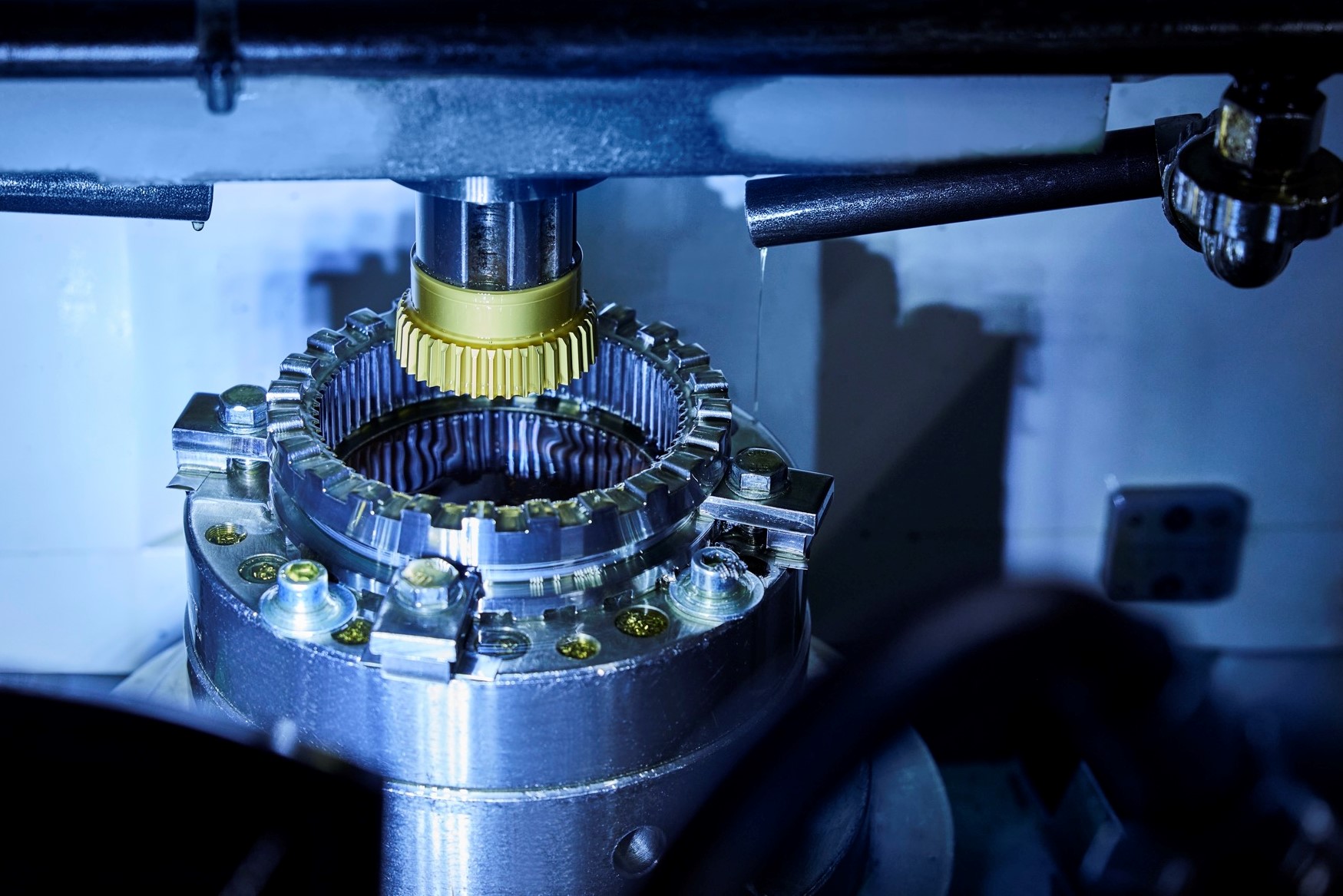

Internal gear hobbing machines
Keyways / broaching machines
Various machines for peripheral operations such as special milling, hardening, grinding, lapping, etc.

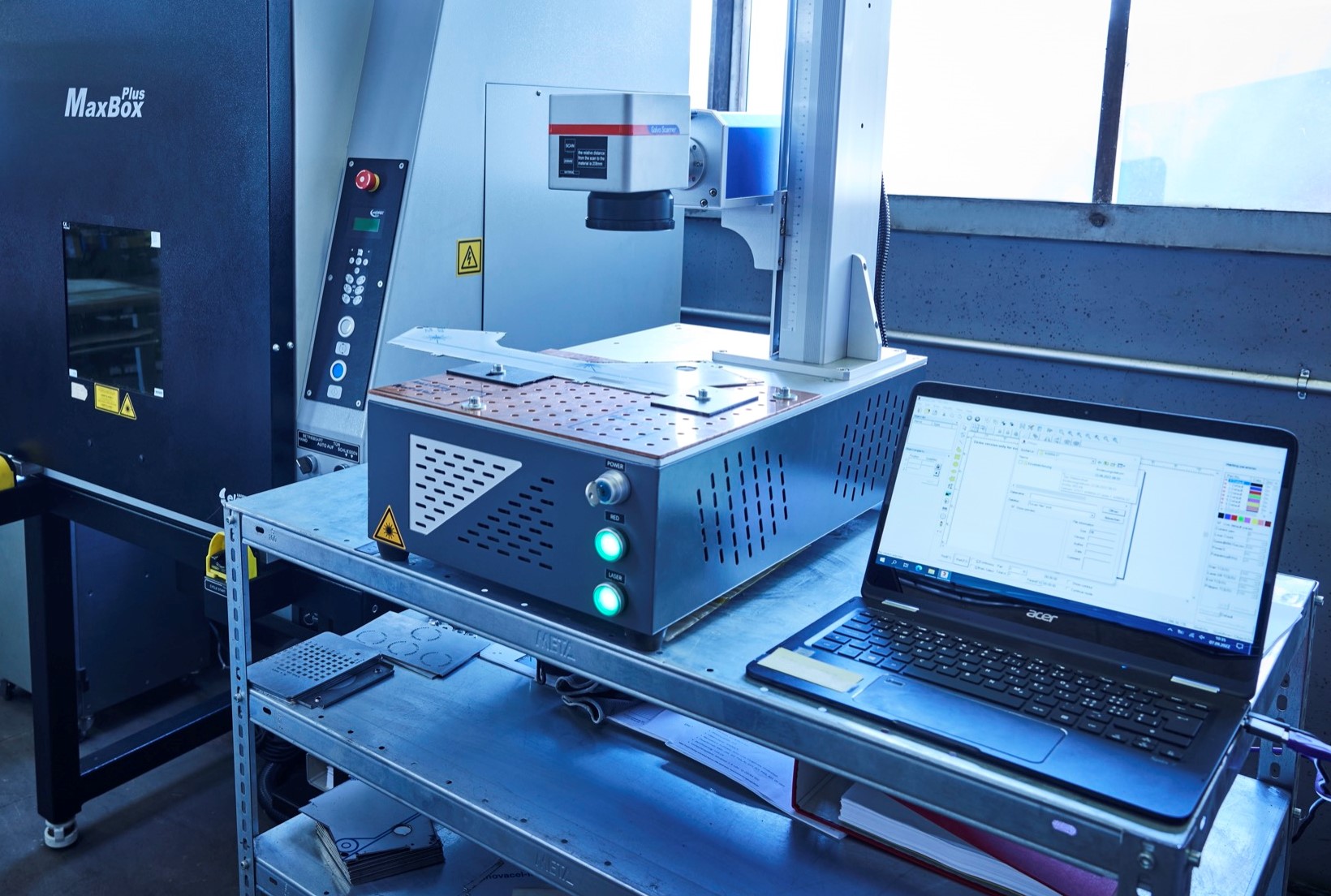

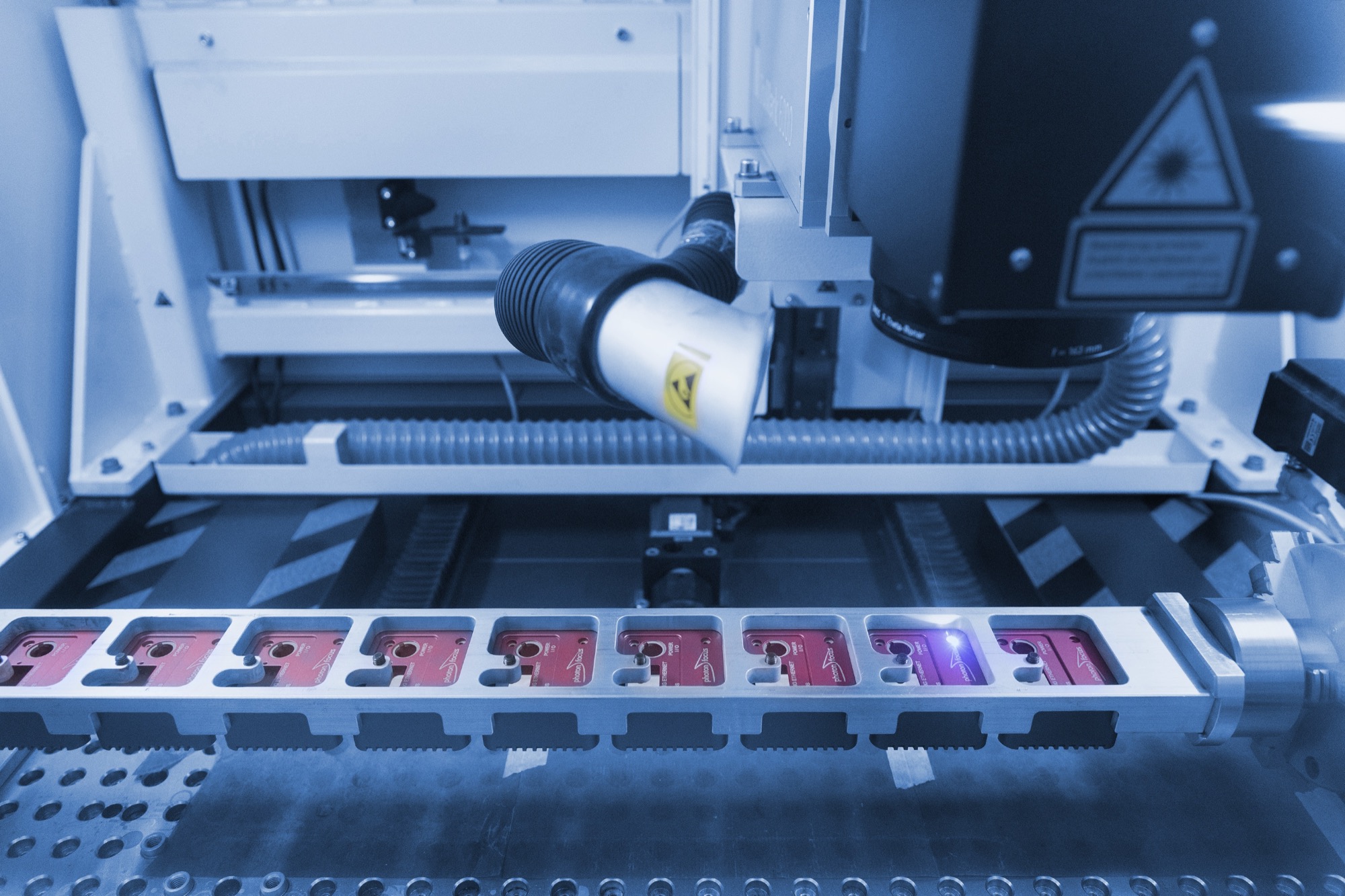

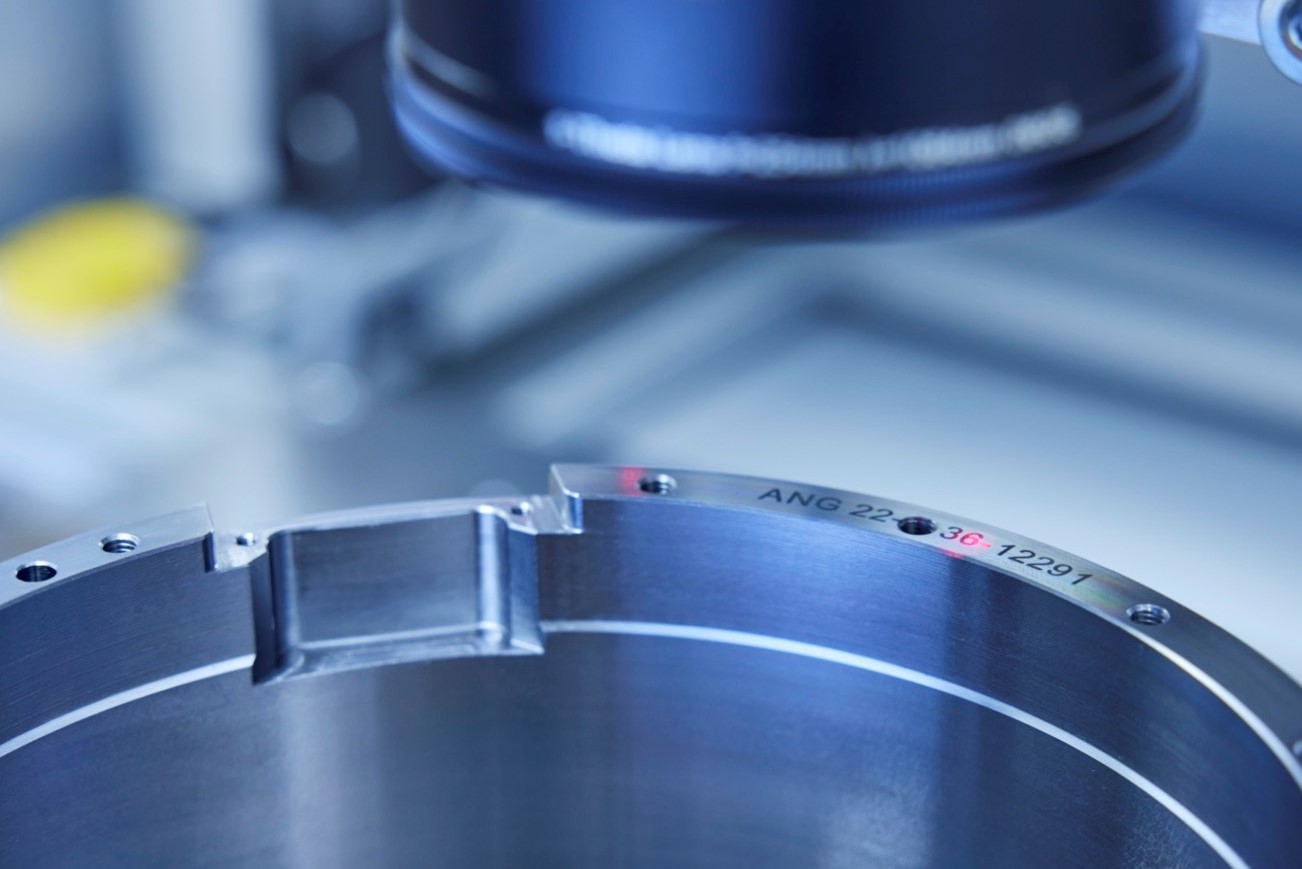

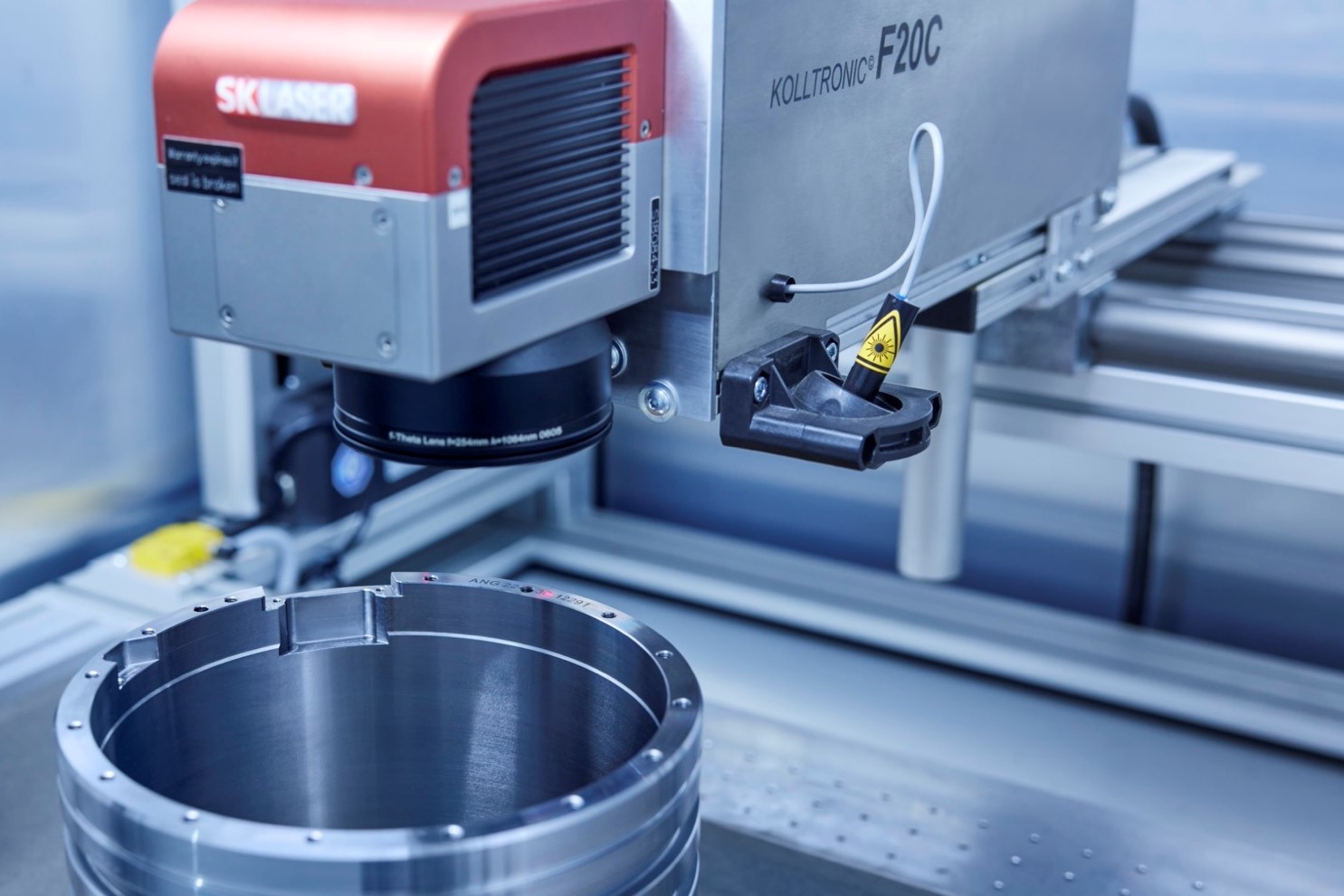

LASER ENGRAVING

"Look at me and I'll tell you what you are". Laser engraving is one of our many marking options. Such direct and professional marking saves time and reduces errors.

Know-how

Professional and durable marking is a prerequisite for simple component identification and full traceability. For a minimisation of administrative tasks and full transparency.

Each of our production sites has modern and variously programmable laser engraving machines. In accordance with our customers' requirements, the marking is carried out. Combinations of numbers and letters up to logos and graphics are possible.

Our large machine park includes various programmable CNC laser engraving machines.

Input: customer specifications in DXF format

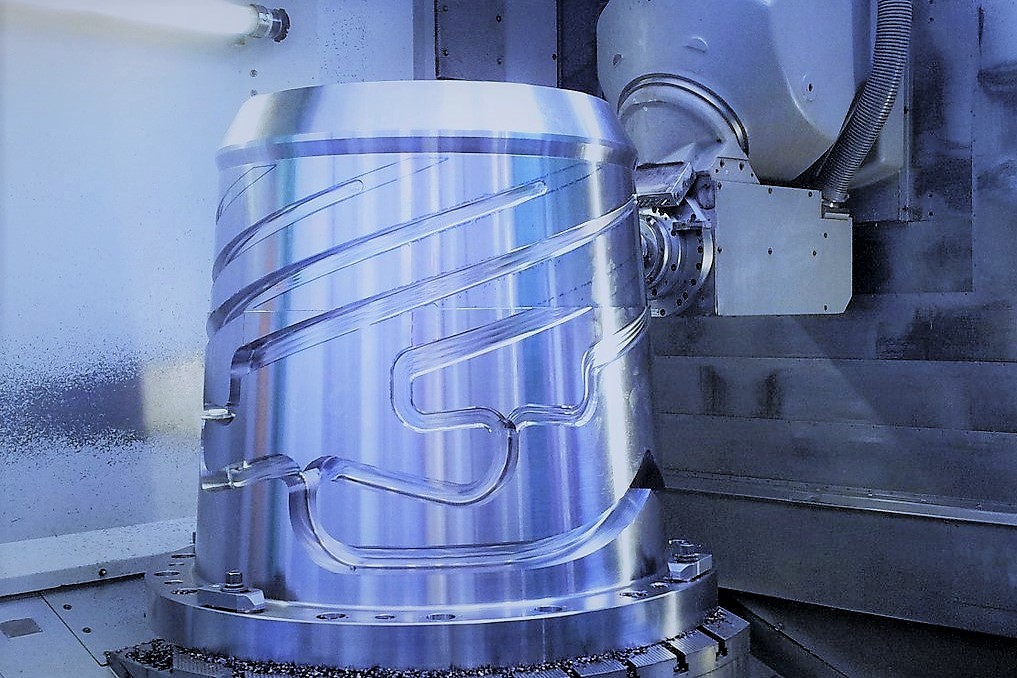

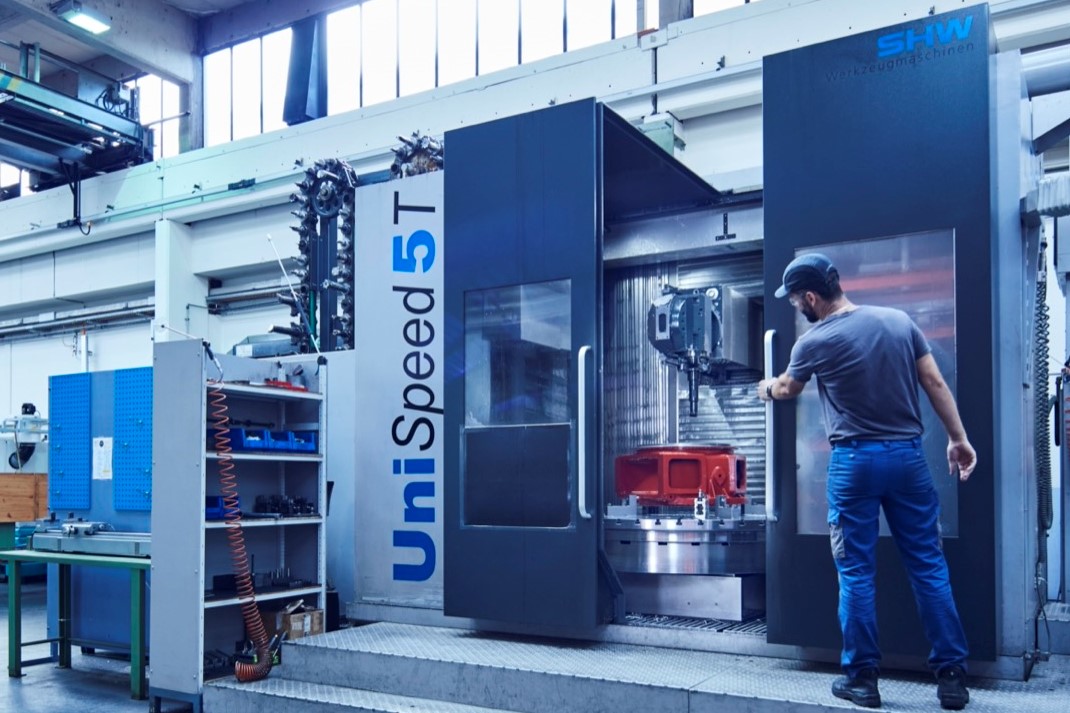

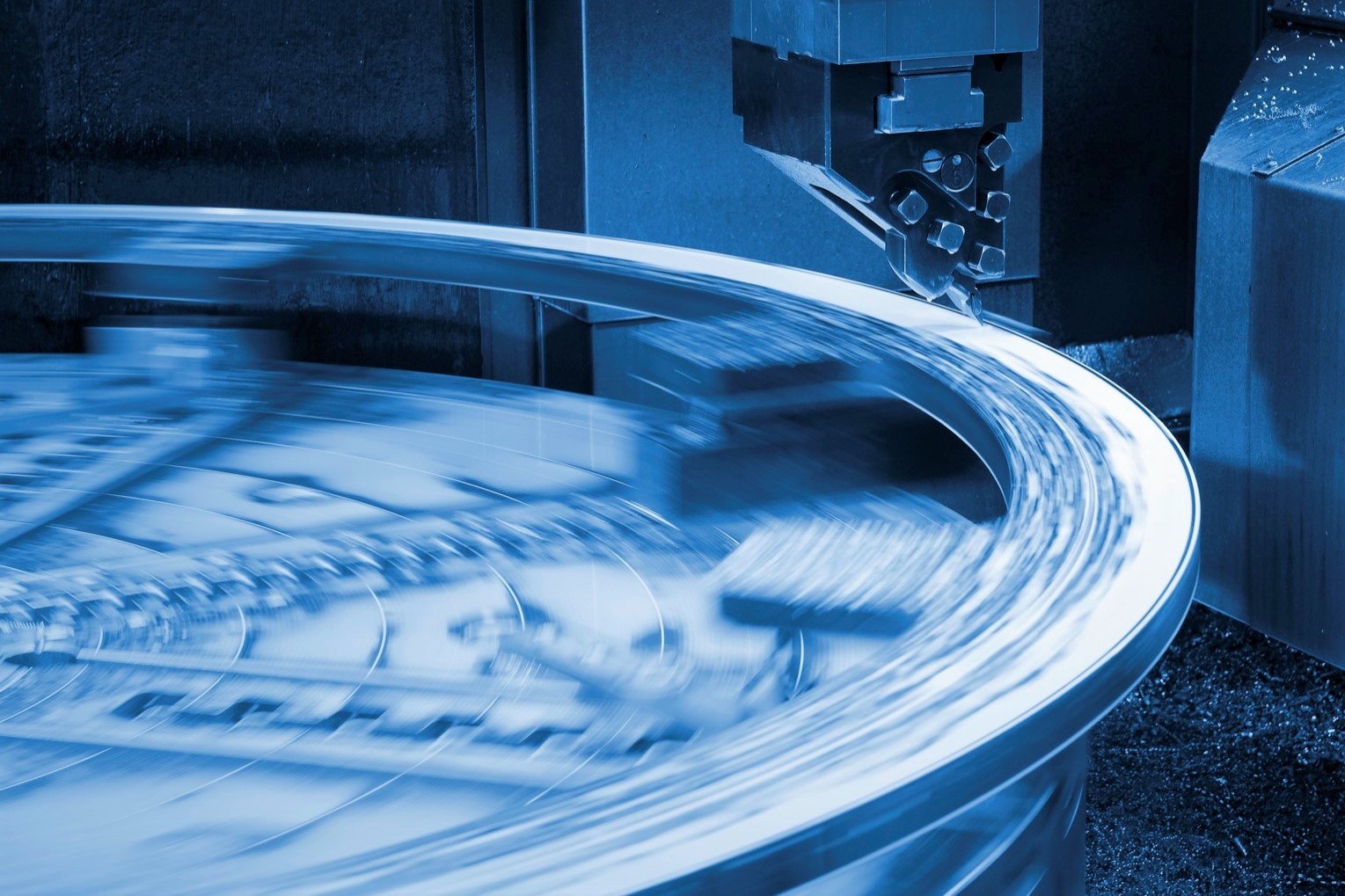

Vertical CNC turning & machining of large parts

Large and precise: To machine large workpieces with the highest precision, you need not only the right, modern technology, but above all a lot of experience and know-how. We have them.

Know-how

Manufacture of large and demanding CNC parts made of steel, stainless steel, special steels or nickel-based alloys as well as aluminium alloys with tight tolerances.

Our extensive machine park includes:

CNC vertical lathes with driven tools, diameter range 500 to 2000mm
CNC double spindle vertical lathes with driven tools, diameter range 400 to 1100mm
Various CNC portal milling machines, machining range up to 2235x1500x2500mm XYZ
4 axis CNC horizontal and vertical machining centres and turn-mill centres, machining range up to 1800x1620x1300mm (XYZ), B axis 1000x1250mm

WORKING RANGE

Vertical CNC turning: D : 3200 / W : 2200 / H : 1800 / table load max. 5to.
4-axis CNC machining centre: X: 2200 / Y: 1300 / Z: 1300 / B-axis 180° x 1° / table load max. 2.5 to.
